Solar Pumping

Key Info

Design Aspect of System

System Capacity: 0.25 HP to up to 20 HP

Anti-damage & Theft Protection

Space Optimized Structural Design

Electrical Isolation on Outdoor Protection

High Durability with rugged hardware design

Flexible Maintainability with remote diagnosis

Ensured optimum Solar Energy harvesting with early morning start & late afternoon stop

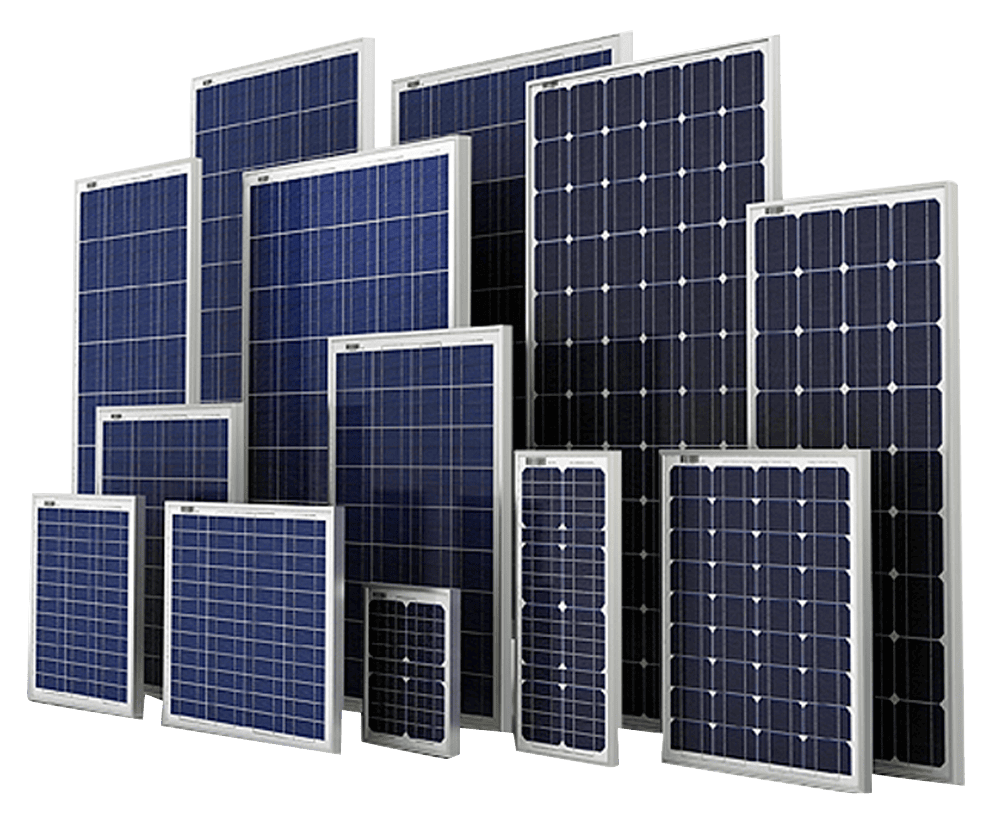

Solar Photovoltaic Module

SPV water pumping systems with certification as per IEC 61215 specifications or equivalent agency

Ensured protections against lightning, hails and storms

PV modules will have a minimum efficiency of 16.5%

Fill factor more than 70%

Low iron tempered glass, AR coated 4mm thick

Height of Aluminum frame of PV would be 40 mm

Both sides EVA encapsulation: upper of cell EVA-F406PS and lower of cell EVA-F806PS

Expiry of Back sheet would be complied to warranty period

PV module manufacturer with Proven Track Record (PTR) towards performance of previously 10 years

TIER-1 module manufacturer by Bloomberg rating

Module Mounting Structure

Module mounting structure can be Fixed Tilt, Dual Axis Manual/Auto Tracker

Fully prefabricated structural design

Capacity of holding module can be customized based on the requirement

All members are 86 micron hot dipped galvanized

Maximum length of an individual member is 3 meter, easy to mobilize and install in remote sites

Faster installation and lower maintenance

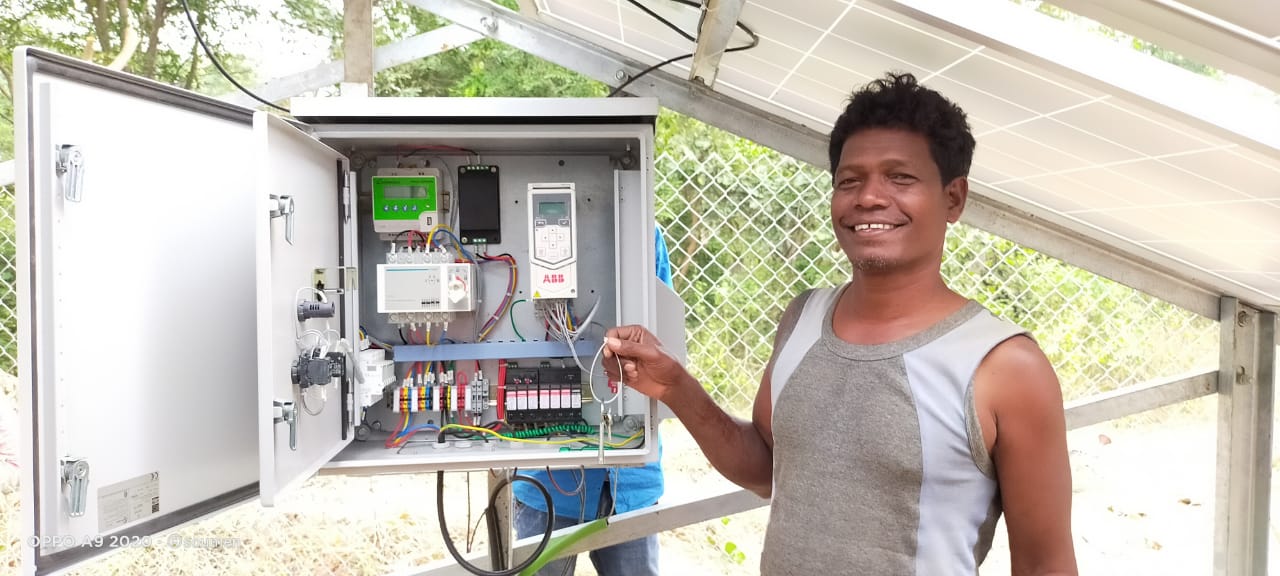

Pump Controller Drive Panel

IP54 CPRI tested double door VFD enclosure

Cross ventilation for natural cooling inside the enclosure

Rain canopy over louver filter to prevent rain entry

Designed to operated up to 50 deg C ambient temperature and can be re-rated up to 60 deg C

Grid connection supported facility (Dual operation mode)

Global standard quality controlled imported module

VFD module with in-built EMC filter

Communicable over Modbus RS485 port connectivity

Protections: Dry run of motor pump set, Open circuit/ single phasing, Over current, accidental short circuit, locked rotor condition, under voltage, reverse polarity

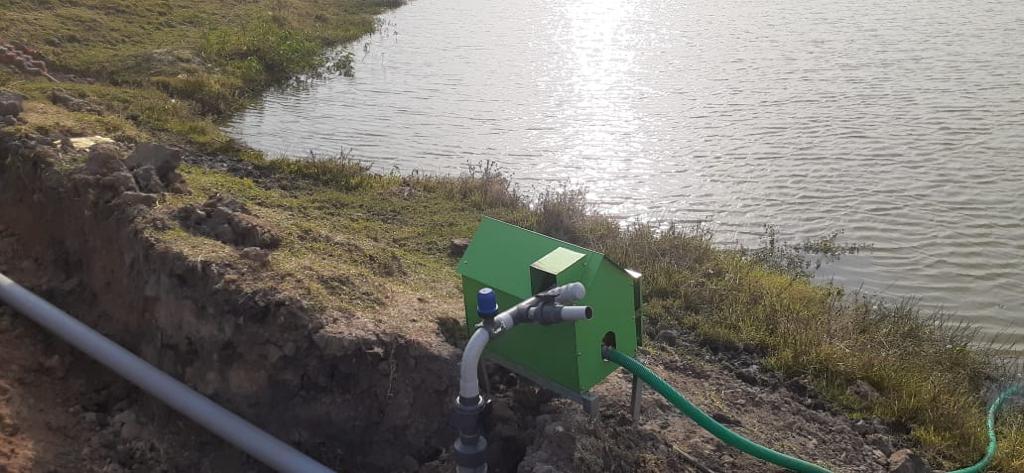

Pump Canopy for Surface Pump Set

Powder-coated pump canopy for surface pump set installation

Prefabricated design of the top canopy

Assemble with anti-theft fasteners

Bottom pump platform is hot dipped galvanized

Top canopy along with pump set can be easily detached from the base platform during the flood time

Easy Installation and low maintenance

Padlock on the front door

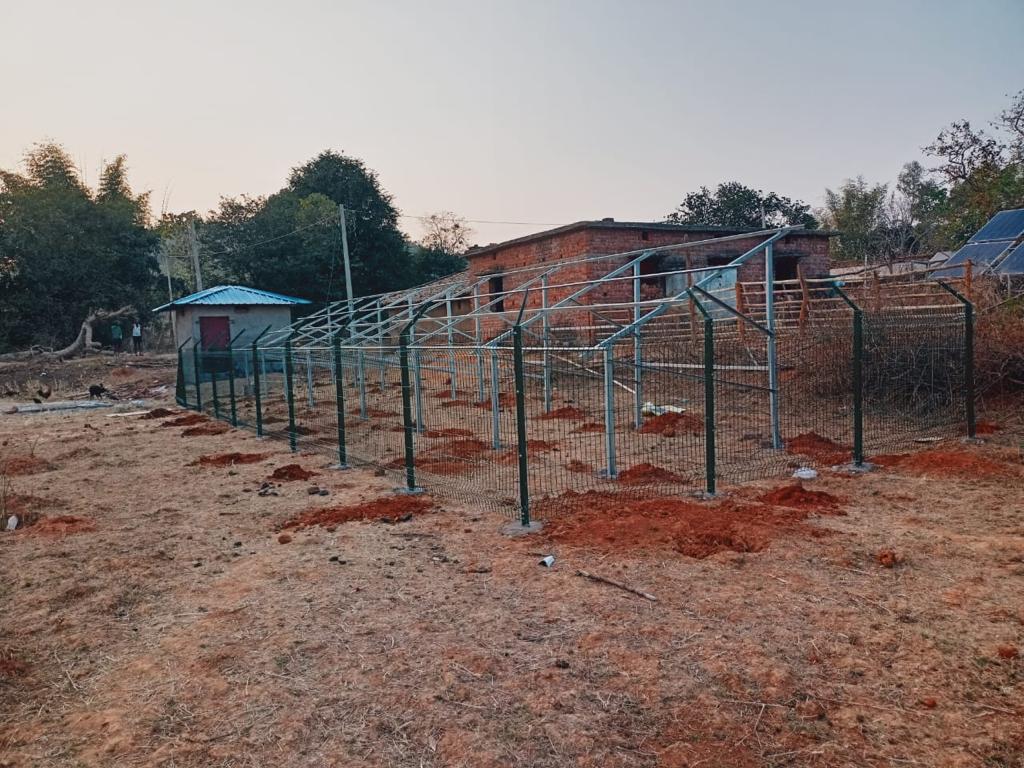

Solar Array Fencing

40 X 40 X 5 mm fencing post 7 Feet fencing post

40 X 3 mm fencing strip to attached the wire mesh with the fencing post

2 X 1 meter entry gate

Horizontal support between the fencing post 30 X 30 X 5 mm angle

All members are 86 micron hot dipped galvanized

50 mm chain link 3 mm diameter galvanized wire mesh

SS fasteners for fencing attachment

Fencing Gate with Lock Arrangement welded to the gate

Connectora – Intelligent Device

Connectora takes the data from the system and provide us via web based interface

Water flow meter input as Digital Pulse or 4-20 mA Analog Interface

SMS notification up to 3 mobile numbers

Door open alert in case of unauthorized access

Drive/Starter Fault alert

SPD trip in case of lightening

Additionally 4-20 mA and 0-10 V input are available to interface any sensor to measure physical parameters

In Off-grid Solar System: 12 VDC source to this device can be obtained from PV array (up to 800 VDC) with a specially designed power supply
